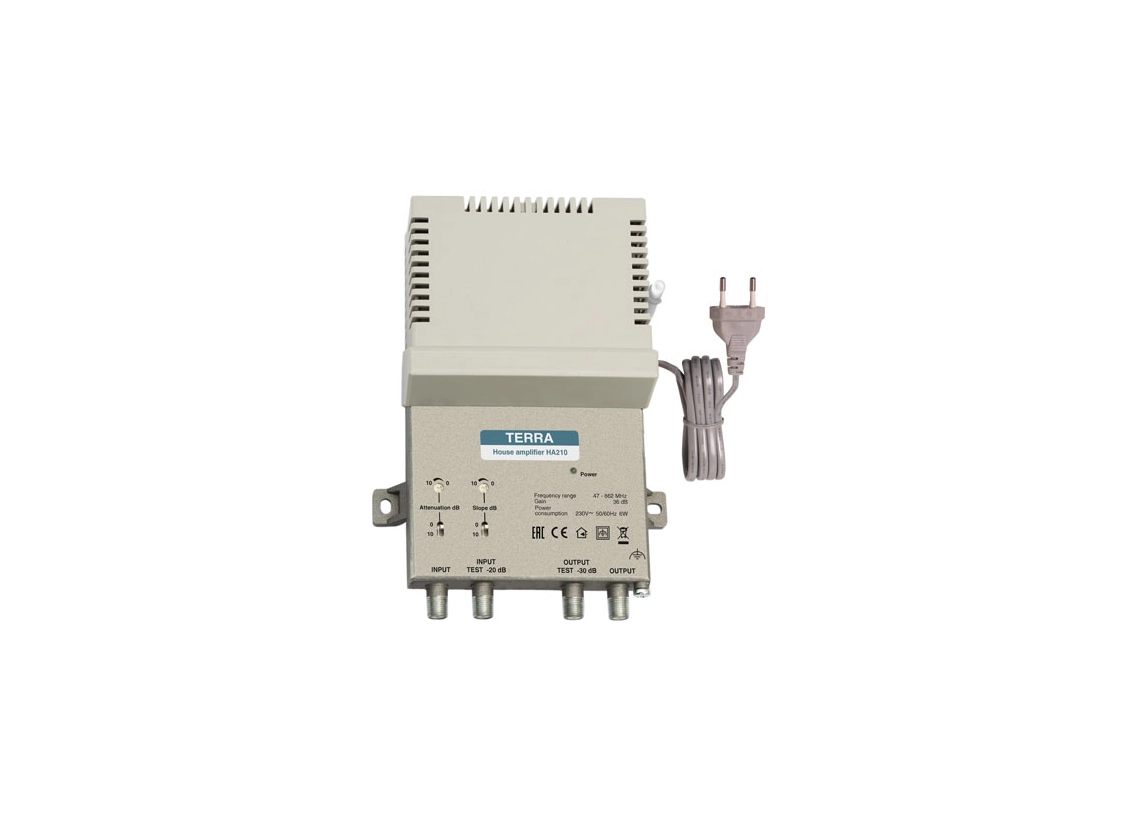

HA210
House amplifier
up to 862 MHz, gain 36 dB, level CTB/CSO 107 dBµV
|
Ordering number 10584 |
Specifications
|
T Y P E |
HA210 |
||||
|
Ordering number |
10584 |
||||
|
Frequency range |
47-862 MHz |
||||
|
Gain |
36 dB |
||||
|
Flatness |
± 0.7 dB |
||||
|
Gain adjustment |
20 dB |
||||
|
Slope adjustment |
20 dB |
||||
|
Output level CTB, CSO (EN60728-3)* |
107 dBµV |
||||
|
Input and output return loss |
≥ 14 dB at 40 MHz; -1.5 dB/oct., but not less 10 dB |
||||
|
Noise figure |
7 dB |
||||
|
Test points |
input - 20 dB, output - 30 dB |
||||
|
Power consumption |
230 V~ 50/60 Hz 6 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
135x180x52 mm/0.7 kg |
* measured with 10 dB equalizer
