T Y P E

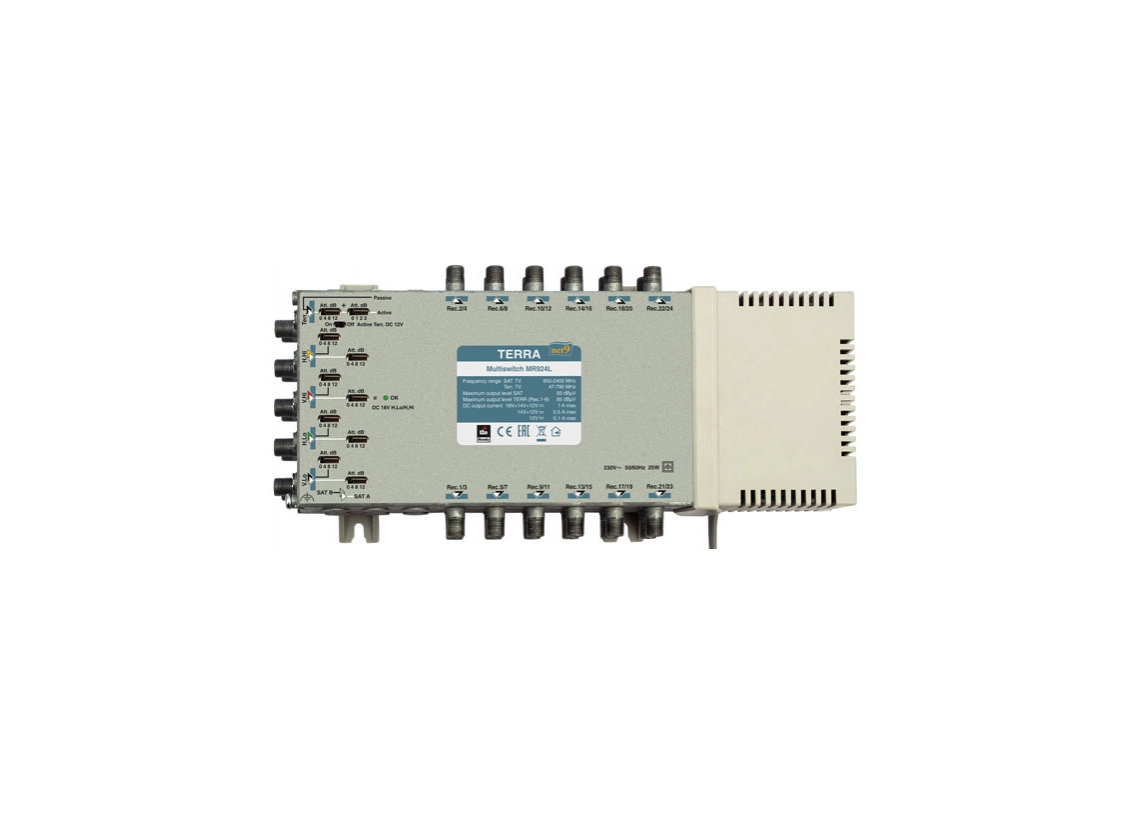

MR924L

Ordering number

02774

Number of outputs

24

Frequency range

SAT IF

950-2400 MHz

Terr. TV

Gain (fixed slope
pre-correction)

SAT IF

outputs 1-8

7 ÷ 12 dB

outputs 9-16

6 ÷ 10 dB

outputs 17-24

5 ÷ 8 dB

Terr. TV
active

outputs 1-8

1 ÷ 4 dB

outputs 9-16

0 ÷ 2 dB

outputs 17-24

-1 ÷ 0 dB

Loss

Terr. TV
passive

outputs 1-8

29 dB

outputs 9-16

31 dB

outputs 17-24

33 dB

Gain adjustment

SAT IF

12 dB by 4 dB step

Terr. TV active

15 dB by 1 dB step

Output level for SAT IF (IMD3=35 dB)*

93 dBµV

Output level for Terr. TV
(IMD3=60 dB)*

outputs 1-8

85 dBµV

outputs 9-16

83 dBµV

outputs 17-24

81 dBµV

SAT inputs decoupling

> 30 dB

Outputs decoupling

> 30 dB

Supply voltage through RF inputs

H,Lo and H,Hi - 18 V; V,Lo and V,Hi - 14 V;
Terr. TV - 12 V

DC supply current
through RF inputs

+18V &+14V &+12V

< 1 A

+14V & +12V

< 0.5 A

+12V

< 0.1 A

Current consumption from receiver

< 60 mA

Control signals

14/18 V, 0/22 kHz, tone burst or DiSEqC 1.0,
DiSEqC 2.0 or compatible versions

Power consumption**

230 V~  50/60 Hz  4 W

Operating temperature range

-20° ÷ + 50°C

Dimensions/Weight (packed)

293x135x52 mm/1.75 kg
