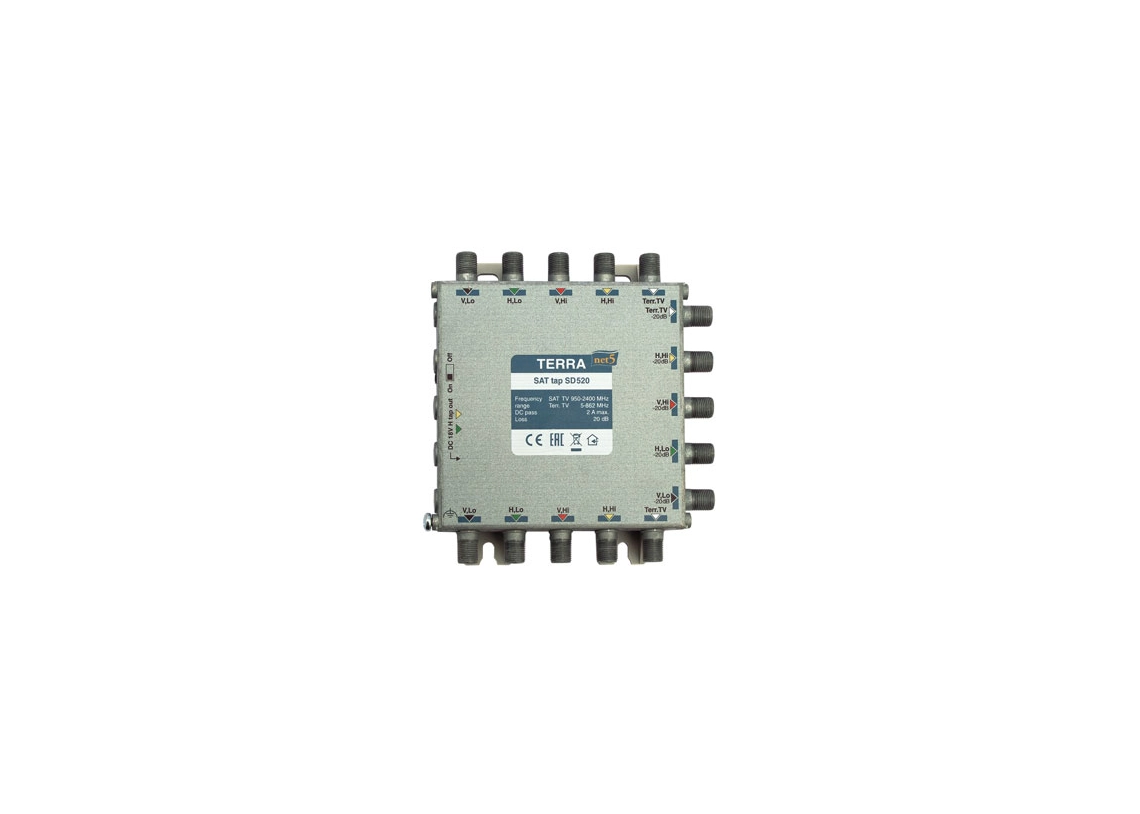

SD520

Tap 20 dB
5 inputs



Ordering number 02718
Specifications

T Y P E

SD520

Ordering number

02718

Frequency range

SAT IF

950-2400 MHz

Terr. TV

5-862 MHz

Through loss

SAT IF

0.8 dB

Terr. TV

1.1 dB

Tap loss

SAT IF

22 ÷ 18 dB

Terr. TV

20 dB

SAT inputs decoupling

SAT IF

30 dB

Terr. TV

30 dB

DC pass through

H lines

2 A max. (1 A max. through one line)

Terr.TV lines

0.1 A max.

Return loss

> 10 dB

Operating temperature range

-20° ÷ + 50°C

Dimensions/Weight (packed)

126x135x30 mm/0.44 kg

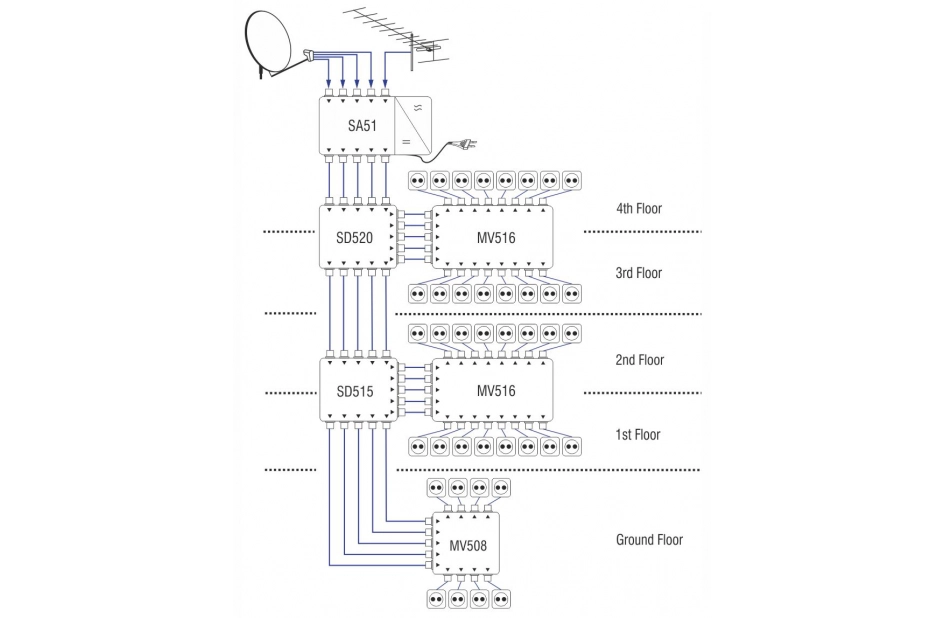

Application example
Installation of single multiswitch for two floors. 8 subscribers on every floor.
