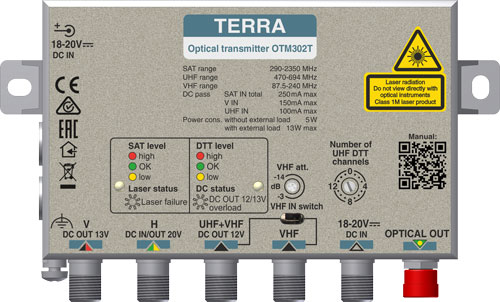

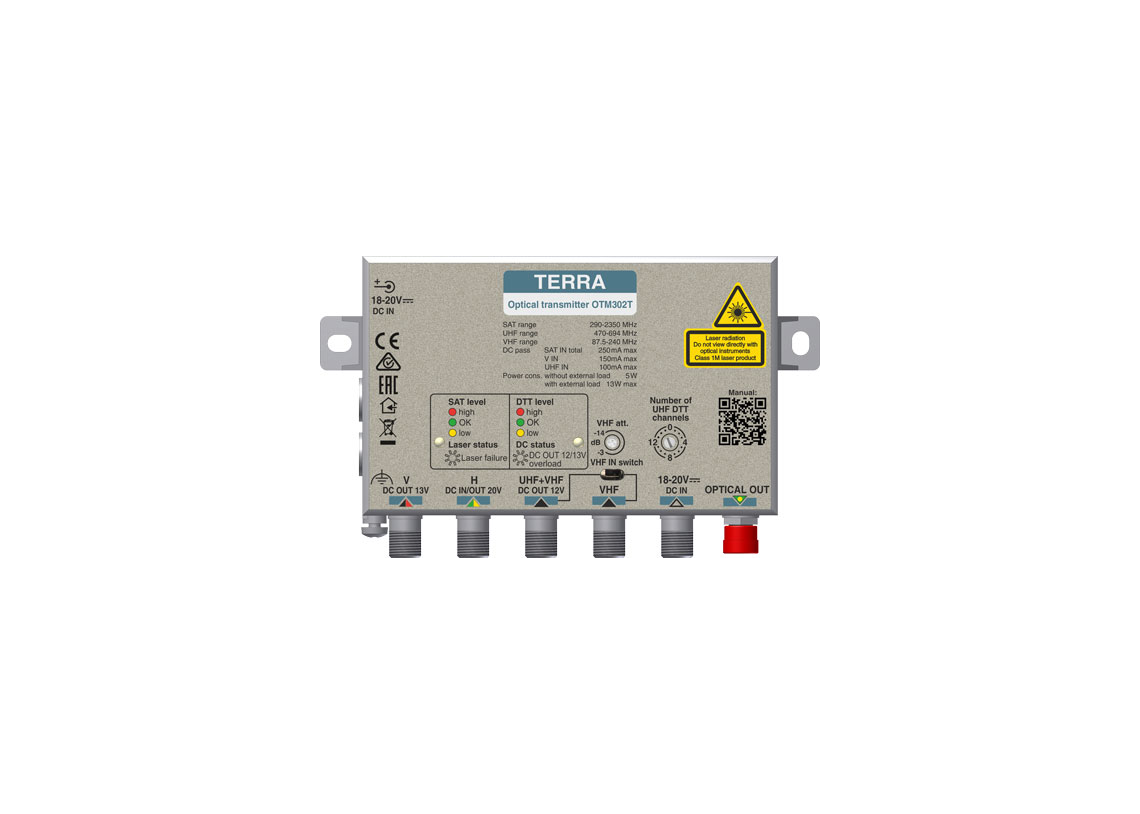

OTM302T 6F31 E
Discontinued
1310 nm, FP Input 87.5-240 MHz...470-694 MHz and 2x(290-2350) MHz, FC/UPC
|
Ordering number 14884 |
|
T Y P E |
OTM302T 6F31 E |
||||
|
Wideband inputs |
|||||
|
Frequency range |
2 x (290-2350 MHz) |
||||
|
Input return loss / impedance |
> 12 dB / 75 Ω |
||||
|
RF input level (AGC range) 60 carriers |
70-90 dBµV |
||||
|
LNB remote feeding |
13 V 150 mA max. via V input, 18-20 V via H input, 250 mA max. total |
||||
|
DTT inputs |
|||||
|
Frequency range |
VHF input |
87.5-240 MHz |
|||
|
VHF input* + UHF |
87.5-240 MHz + 470-694 MHz |
||||
|
RF input level** |
UHF 55-80 dBµV / VHF 70-80 dBµV (per carrier) |
||||
|
Input return loss / impedance |
> 10 dB / 75 Ω |
||||
|
Remote feeding |
UHF+VHF input |
12 V 100 mA max. |
|||
|
Optical output |
|||||
|
Power |
6 dBm |
||||
|
Laser |
FP |
||||
|
Wavelength |
1310 nm |
||||
|
Connector |
FC/UPC |
||||
|
General |
|||||
|
Supply voltage |
via DC jack |
18-20 V |
|||
|
via H input and DC IN |
18-20 V |
||||
|
Power consumption*** |
5 W |
||||
|
Operating temperature range |
-20° C ÷ + 40° C |
||||
|
Dimensions/Weight (packed) |
147x89x26 mm/0.4 kg |
||||
* switchable
** FM level the same like DTT, DAB level 12 dB below
*** without remote feeding
