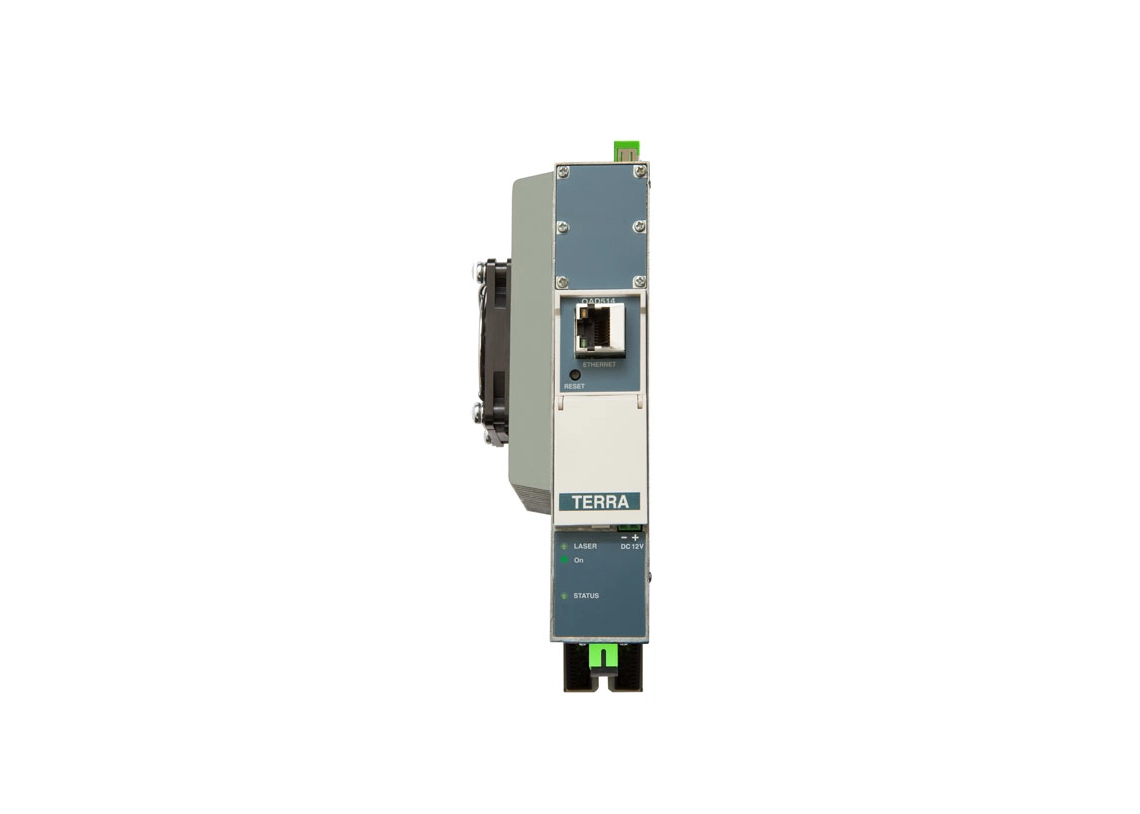

OAD514 H
Modular amplifier, four outputs
13 dBm, 1528-1564 nm, SC/APC
|
Ordering number 03898 |
Specifications
|
T Y P E |
OAD514 H |
||||
|
Ordering number |
03898 |
||||
|
Operating wavelength |
1528-1564 nm |
||||
|
Input power |
-3...+10 dBm |
||||
|
Number of outputs |
4 |
||||
|
Power per output |
13 dBm |
||||
|
Noise figure |
5 dB max. |
||||
|
Optical return loss |
min. 50 dB |
||||
|
Status indication |
LAN & LED |
||||
|
Supply voltage |
12 V ± 1 V |
||||
|
Current consumption |
1.2 A max. |
||||
|
Operating temperature range |
+10°C ÷ +35°C |
||||
|
Dimensions/Weight (packed) |
65x198x124.5 mm/1.64 kg |
