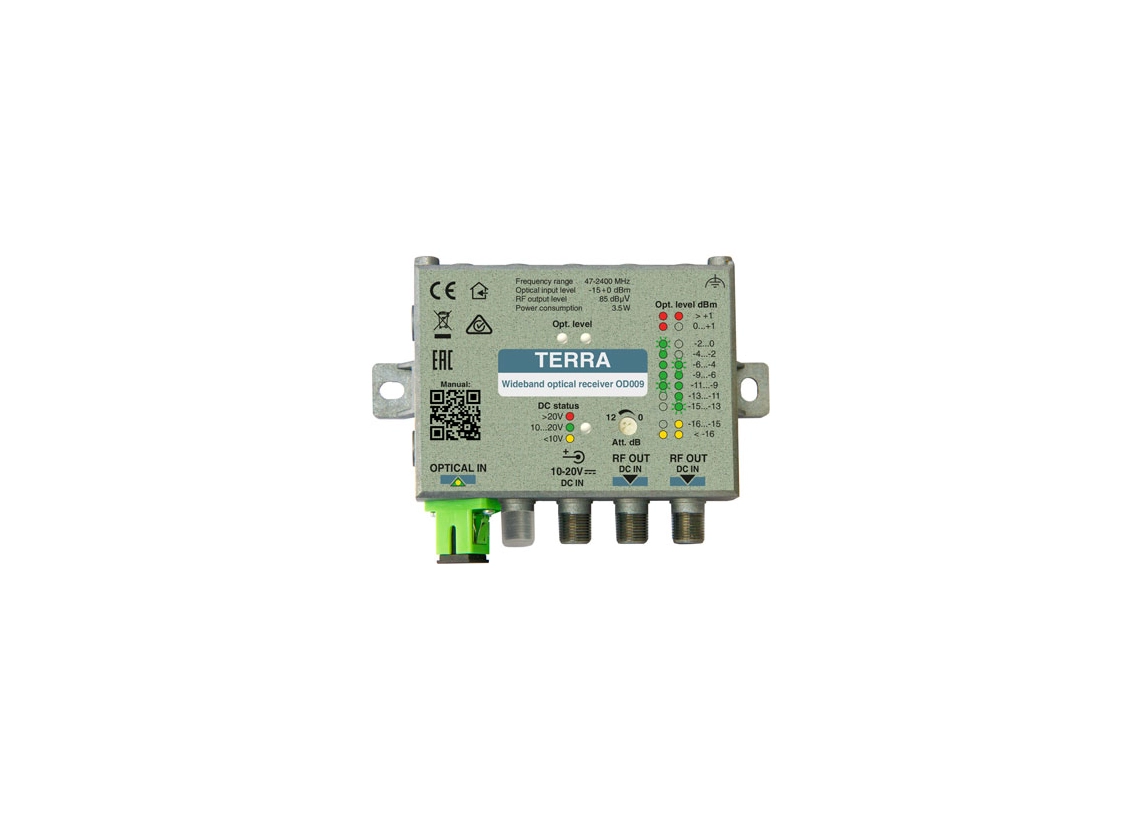

OD009 H
Discontinued
up to 2400 MHz, level AGC 85 dBµV, SC/APC
|
Ordering number 03884 |
|
T Y P E |
OD009 H |
||||
|
Ordering number |
03884 |
||||
|
Optical |
wavelenght for receiver |
1260-1620 nm |
|||
|
optical connector |
SC/APC |
||||
|
return loss input |
> 45 dB |
||||
|
input level (AGC range) |
-15 ÷ 0 dBm |
||||
|
noise current density |
≤ 6 pA/√Hz |
||||
|
RF outputs |
number |
2 |
|||
|
frequency range |
47-2400 MHz |
||||
|
isolation |
22 dB |
||||
|
impedance |
75 Ω |
||||
|
return loss |
≥ 12 dB up to 2400 MHz |
||||
|
frequency response |
± 1.5 dB |
||||
|
output level (AGC range) |
85 dBµV per carrier** |
||||
|
spurious |
< -40 dBc** |
||||
|
output level adjustment |
0 ÷ 12 dB |
||||
|
Supply voltage*** |
10 V ÷ 20 V |
||||
|
Current consumption |
12 V 250 mA max. |
||||
|
Operating temperature range |
-20°C ÷ + 50°C |
||||
|
Dimensions/Weight (packed) |
116x88x25.5 mm/0.28 kg |
||||
Receivers with other connectors are supplied by MOQ request.
** optical input signal OMI 4.9%, 30 SAT IF transponders and 8 DTT channels
*** powering via RF outputs or dedicated 3.5/1.35 mm DC jack
