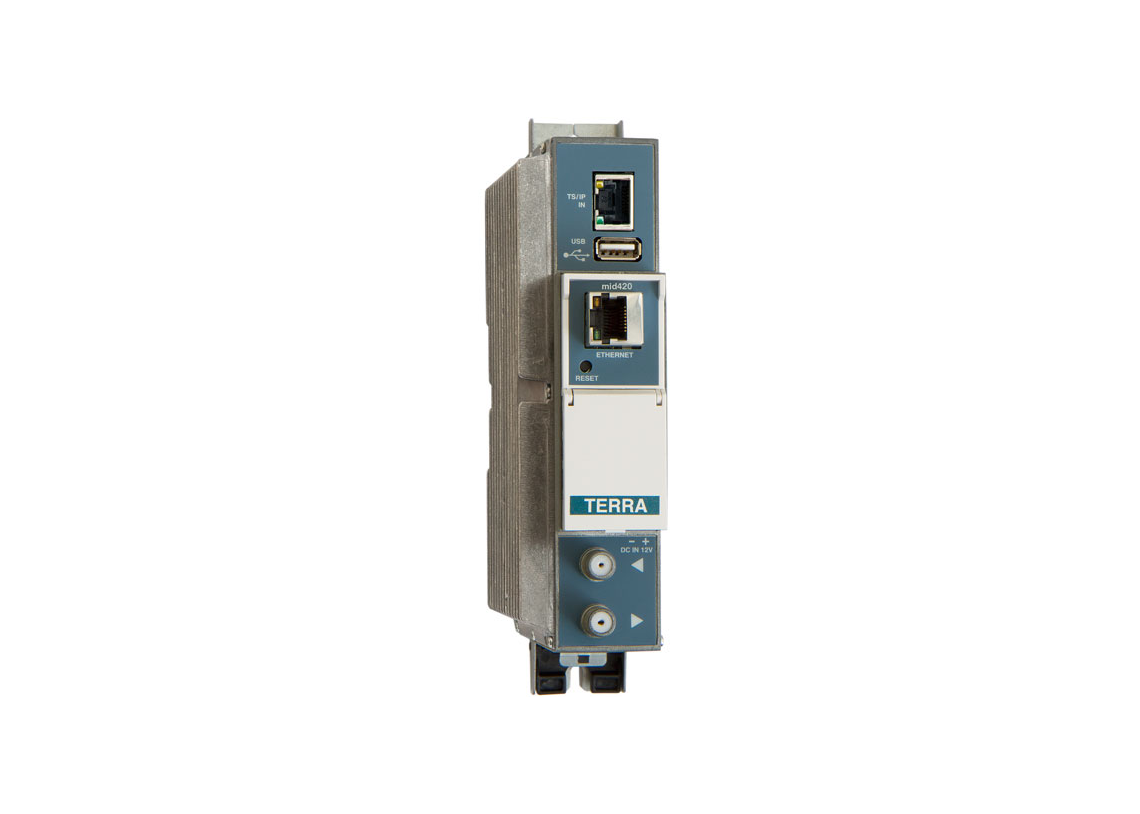

mid420
DVB-S modulator
2 independent output channels
|
Ordering number 03873 |
Specifications
|
T Y P E |
mid420 | ||||
|
Ordering number |
03873 |
||||
|
IP input |
standard |
IEE802.3 100/1000 BaseT |
|||
|
bitrate |
up to 200 Mbps | ||||
|
reception protocols |
UDP/RTP, RTSP |
||||
|
MPTS |
Yes |
||||
|
SPTS |
Yes |
||||
|
RF output |
standard |
pr. |
DVB-S |
||
|
modulation |
pr. |
QPSK |
|||
|
frequency range |
pr. |
250-2350 MHz |
|||
|
channel allocation |
independent | ||||
|
channel count |
2 |
||||
|
level/impedance |
80 ± 2 dBµV/75 Ω |
||||
|
TS bit rate |
< 72 Mbit/s |
||||
|
MER |
≥ 30 dB |
||||
|
channel bandwidth |
pr. |
3...60 MHz |
|||
|
symbol rate |
pr. |
2...45 Ms/s |
|||
|
total output level adjustment |
pr. |
0 ÷ -15.0 dB by 1 dB step |
|||
|
loop through frequency range/loss |
45-2400 MHz / ≤ 5.0 dB |
||||
|
Management port |
standard IEE802.3 10/100 BaseT (independent on IP input) |
||||
|
Current consumption |
12 V 1 A |
||||
|
Operating temperature range |
0°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
48.5x198x112 mm/1.06 kg |
||||
pr. - software control
