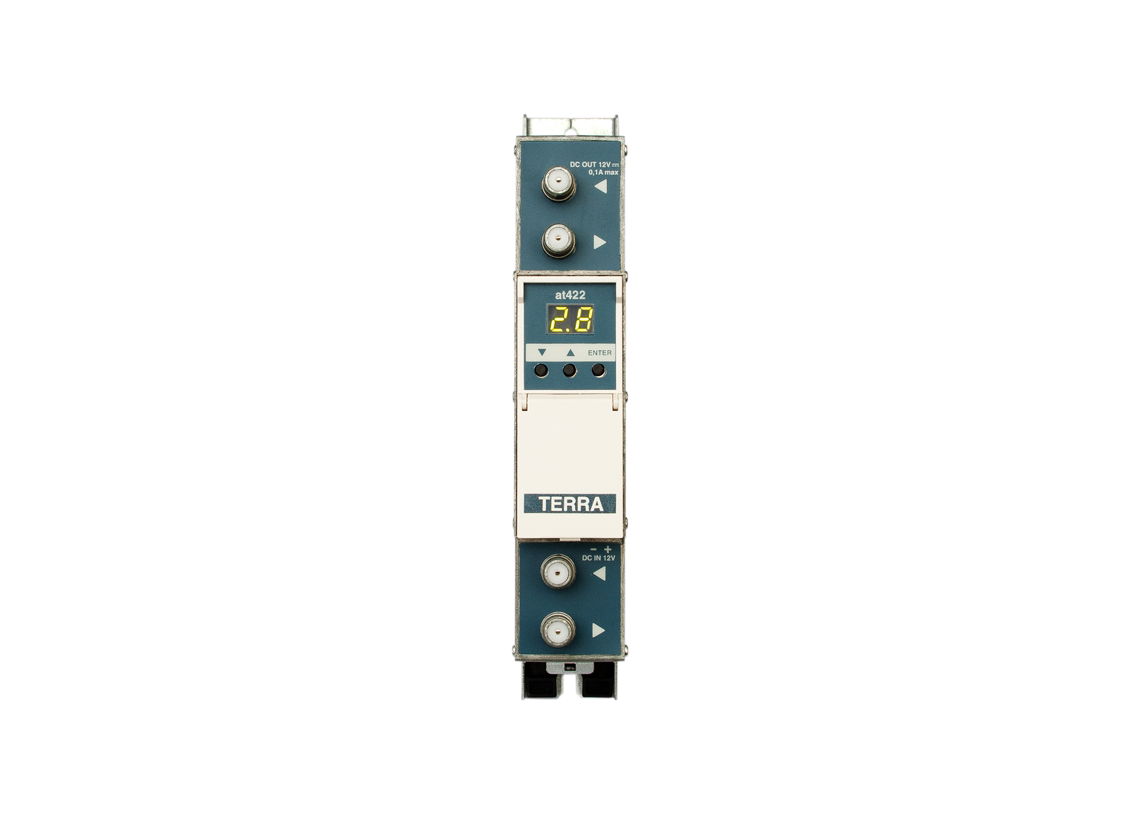

T Y P E |
at422 |
||||
Ordering number |
02564 |
||||
Sections |
2 |
||||
Tuning range of channels |
174-230 MHz |
||||
RF input |
TV standard |
pr. |
analog (Au, B) |
digital (DVB-T*) |
|
channel bandwidth |
7 MHz |
||||
level/impedance |
60-85 dBµV/75 Ω |
50-80 dBµV/75 Ω |
|||
frequency range of RF distribution |
47-862 MHz |
||||
loop through gain |
0 ± 1.5 dB |
||||
return loss |
>10 dB |
||||
RF output |
level/impedance, typical |
90 dBµV/75 Ω |
85 dBµV/75 Ω |
||
MER ofDVB-Tsignal |
- |
≥36 dB (input signal MER 38 dB) |
|||
frequency range of RF combining |
47-2150 MHz |
||||
DC pass through |
0.3 A |
||||
combining through loss Terr/SAT |
1.5/2.5 dB |
||||
level adjustment range |
pr. |
0 ÷ -10 dB by 1 dB step |
|||
return loss |
≥ 10 dB |
||||
Noise figure |
8 dB |
||||
Selectivity, typical |
pr. |
40 dB, ±1.25 MHz from 7 MHz bandwidth border |
40 dB, ±2 MHz from 7 MHz bandwidth border |
||
Offset** |
±1 MHz by 0.125 MHz step |
||||
Spurious signals level |
≤ -60 dBc |
||||
Mirror channel selectivity |
≥ 60 dB |
||||
Flatness of channel bandwidth, typical |
± 1.5 dB |
||||
DC feeding for external |
pr. |
12 V 0.1 A max. |
|||
Current consumption*** |
12 V 0.45 A |
||||
Operating temperature range |
0°C ÷ +50°C |
||||
Dimensions/Weight (packed) |
36x198x107.5 mm/0.9 kg |
pr. - software control
* 6-12 channels by Au standard, E5-E12 channels by B standard
** the offset is used for fine tuning of the channel frequency response
*** without external DC loading
