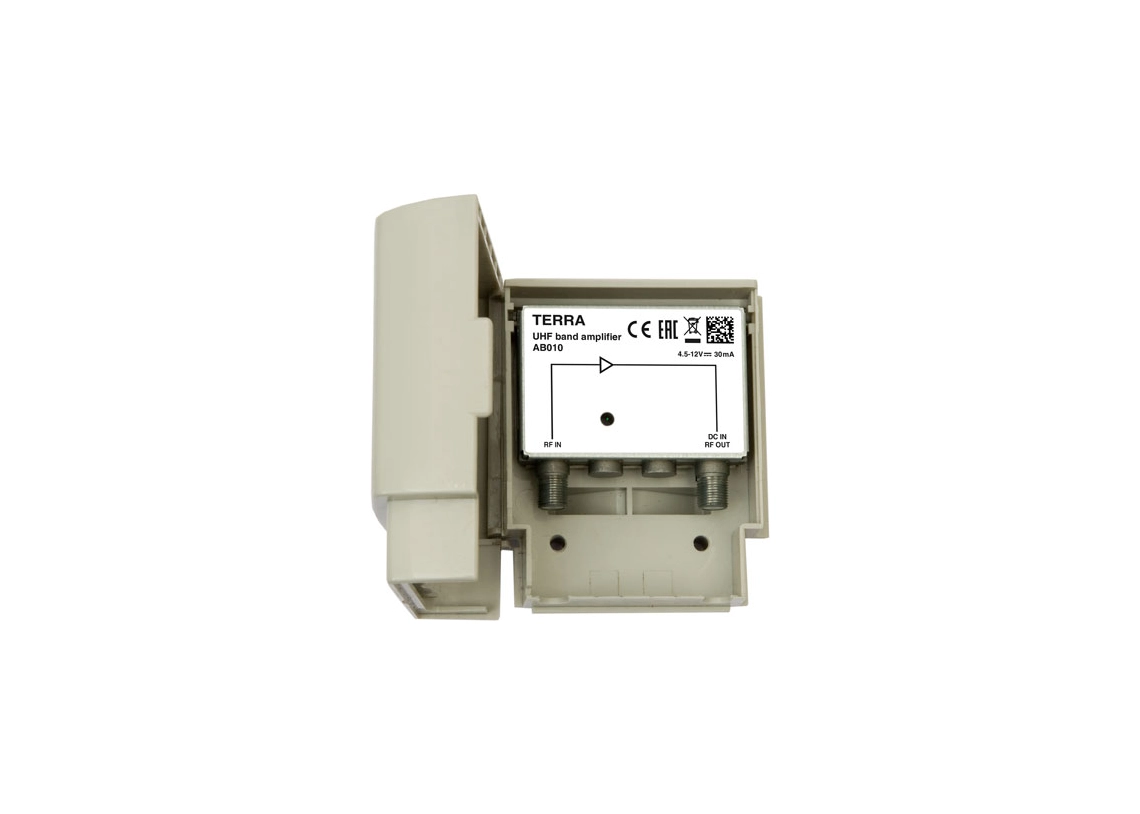

AB010
UHF band amplifier
up to 862 MHz, gain 15 dB, level DIN 98 dBµV
|
Ordering number 02544 |
Specifications
|
T Y P E |
AB010 |
||||
|
Ordering number |
02544 |
||||
|
Frequency range |
470-862 MHz |
||||
|
Gain |
15 dB |
||||
|
Number of inputs |
1 |
||||
|
Number of outputs |
1 |
||||
|
Noise figure |
0.8 dB |
||||
| Maximal output level |
IMD3=60 dB (DIN45004B) 98 dBµV, |
||||
|
Return loss |
> 10 dB |
||||
|
Current consumption |
4.5 V÷12 V 30 mA |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
89x107x43 mm/0.18 kg |
