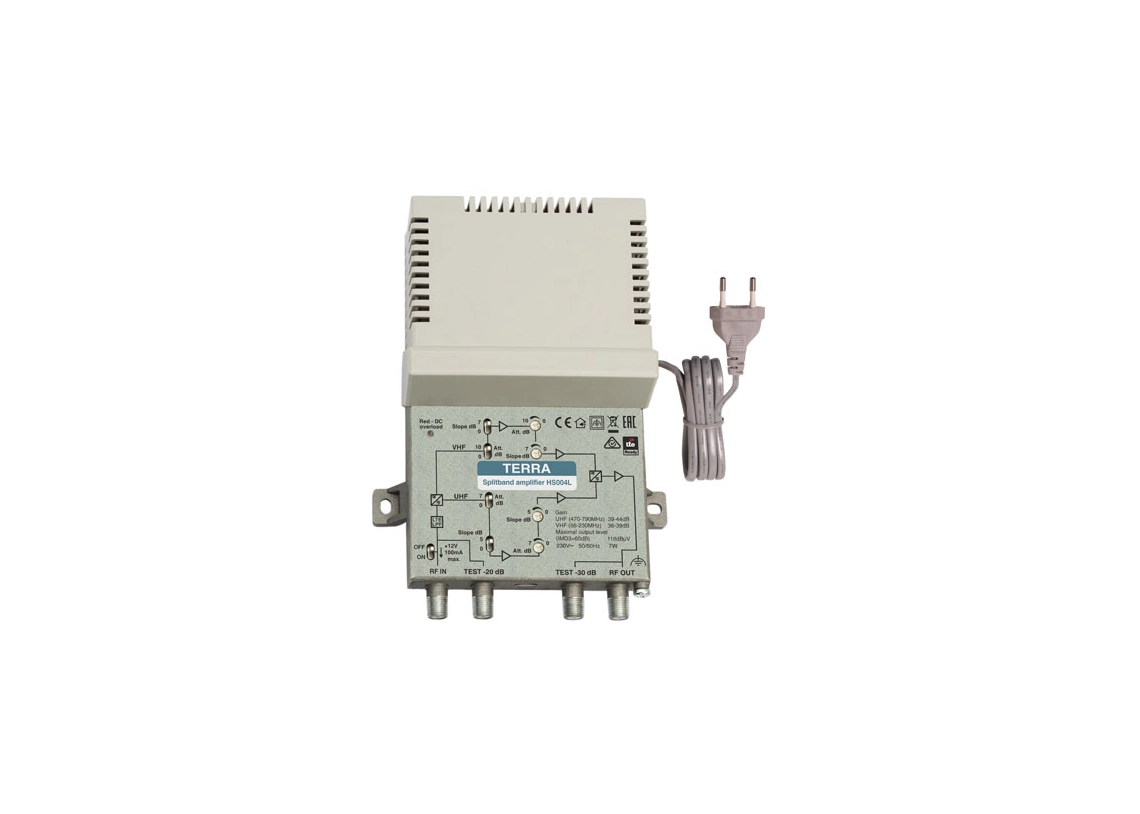

HS004L
Splitband amplifier, LTE800 filter
up to 790 MHz, gain 44 dB, level DIN 121 dBµV
|
Ordering number 02570L |
Specifications
|
T Y P E |
HS004L |
||||
|
Ordering number |
02570L |
||||
|
Frequency range |
VHF 88-230 MHz, UHF 470-790 MHz |
||||
|
Gain |
VHF 36-39 dB, UHF 39-44 dB |
||||
|
Flatness |
± 1 dB |
||||
|
Gain adjustment |
VHF 20 dB, UHF 14 dB |
||||
|
Slope adjustment |
VHF 14 dB, UHF 10 dB |
||||
|
Maximal output level |
IMD3=60 dB (DIN45004B) |
121 dBµV |
|||
|
IMD3=60 dB |
118 dBµV |
||||
|
Input and output return loss |
> 10 dB |
||||
|
Noise figure |
VHF < 6 dB, UHF < 6 dB (700 MHz) |
||||
|
Test points |
input -20 dB, output -30 dB |
||||
|
DC feeding for external |
12 V 100 mA max. |
||||
|
Power consumption* |
230 V~ 50/60 Hz 5 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
135x180x52 mm/0.7 kg |
||||
