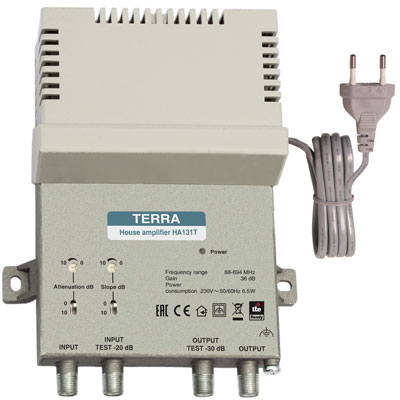

HA131T
House amplifier, LTE700 filter
up to 694 MHz, gain 36 dB, level CTB 106 dBµV, CSO 101 dBµV
|
Ordering number 02585 |
Specifications
|
T Y P E |
HA131T |
||||
|
Ordering number |
02585 |
||||
|
Frequency range |
88 - 694 MHz |
||||
|
Gain |
36 dB |
||||
|
Flatness |
± 0.7 dB |
||||
|
Gain adjustment |
20 dB |
||||
|
Slope adjustment |
20 dB |
||||
|
Maximal output level IMD3=60 dB (DIN45004B) |
122 dBµV |
||||
|
Output level CTB (EN60728-3) |
106 dBµV |
||||
|
Output level CSO (EN60728-3) |
101 dBµV |
||||
|
Input and output return loss |
≥ 14 dB at 40 MHz; -1.5 dB/oct., but not less 10 dB |
||||
|
Noise figure |
7 dB |
||||
|
Test points |
input - 20 dB, output - 30 dB | ||||
|
Power consumption |
230 V~ 50/60 Hz 6.5 W |
||||
|
Operating temperature range |
-20°÷ +50°C |
||||
|
Dimensions/Weight (packed) |
135x164x52 mm/0.7 kg |
