T Y P E

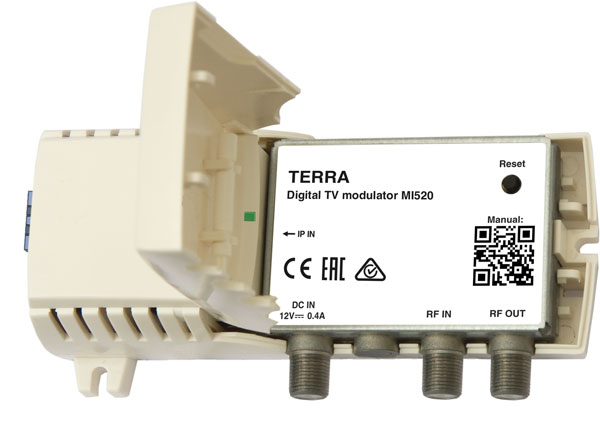

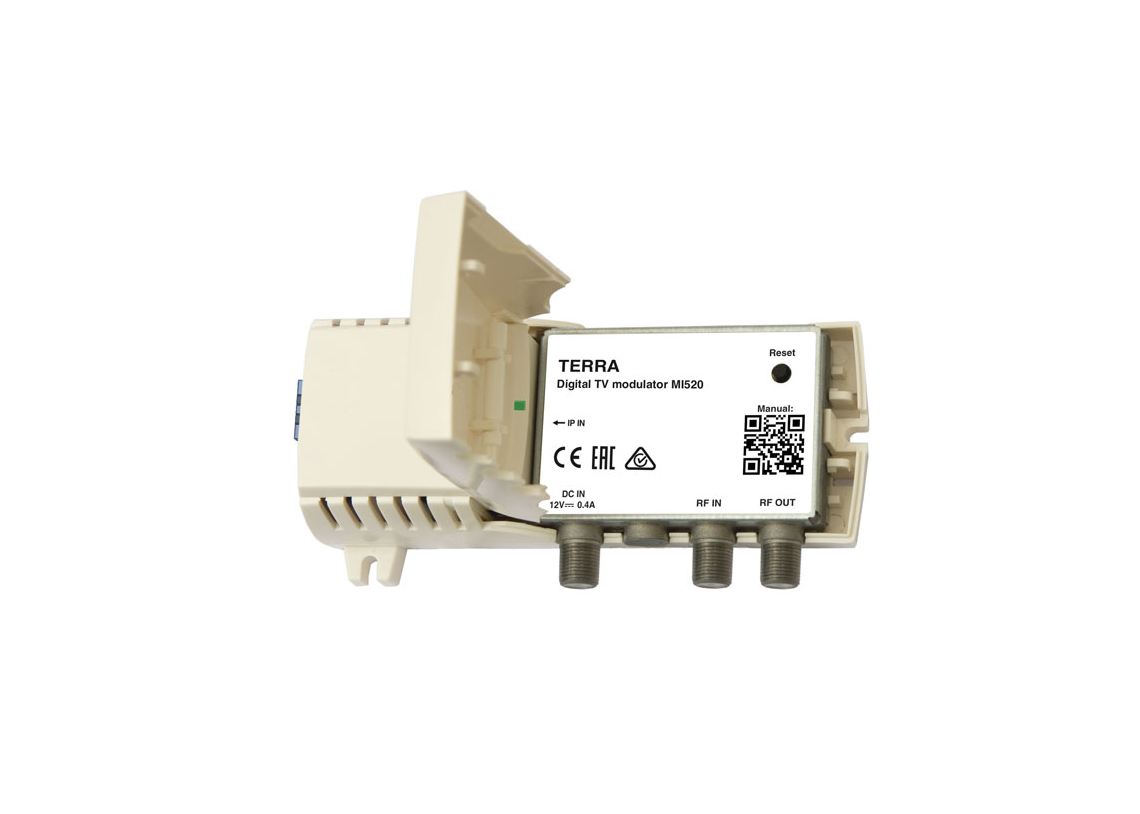

MI520*

Ordering number

14809

IP input

standard

IEE802.3 10/100 BaseT

bit rate

≤ 80 Mbit/s

protocols

UDP / RTP / RTSP

MPTS, SPTS

Yes

RF output

number of channels

2

standard

pr.

DVB-T

ISDB-T

DVB-C

J.83B

modulation

pr.

QPSK/QAM16/QAM64

QPSK/QAM16/
QAM64/DQPSK

QAM16/QAM32/
QAM64/QAM128/QAM256

QAM64/QAM256

frequency range

pr.

174 - 230 MHz, 470 - 862 MHz

96-862 MHz

channel allocation

level/impedance

90 dBµV/75 Ω

MER

≥ 35 dB

≥ 40 dB

channel bandwidth

7/8 MHz

pr.

6 MHz

1.15...8.3 MHz

6 MHz

guard interval

pr.

1/4, 1/8, 1/16, 1/32

-

code rate

pr.

1/2, 2/3, 3/4, 5/6, 7/8

-

-

1...7.2 Msps

pr.

5.057/6.36 Msps

transmission mode

2K

-

total output level adjustment

pr.

0 ÷ 30 dB by 1 dB step

loop through frequency range/loss

45-862 MHz / ≤ 2.5 dB

Management port

standard IEE802.3 10/100 BaseT (the same as stream input)

UI language

multilingual

Current consumption

12 ± 1 V  400 mA (MI520)

Power consumption

100-240 V~  50/60Hz  5.5 W (MI520P)

Operating temperature range

0°C ÷ +40°C

Dimensions/Weight (packed)

133x63x39 mm/0.18 kg
