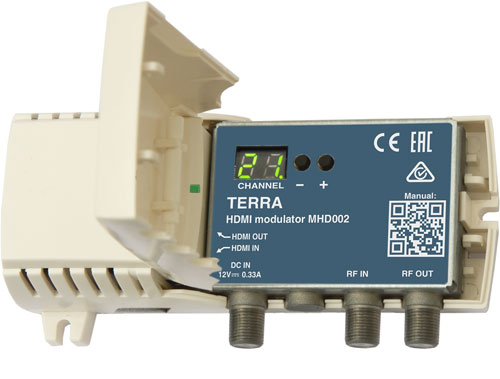

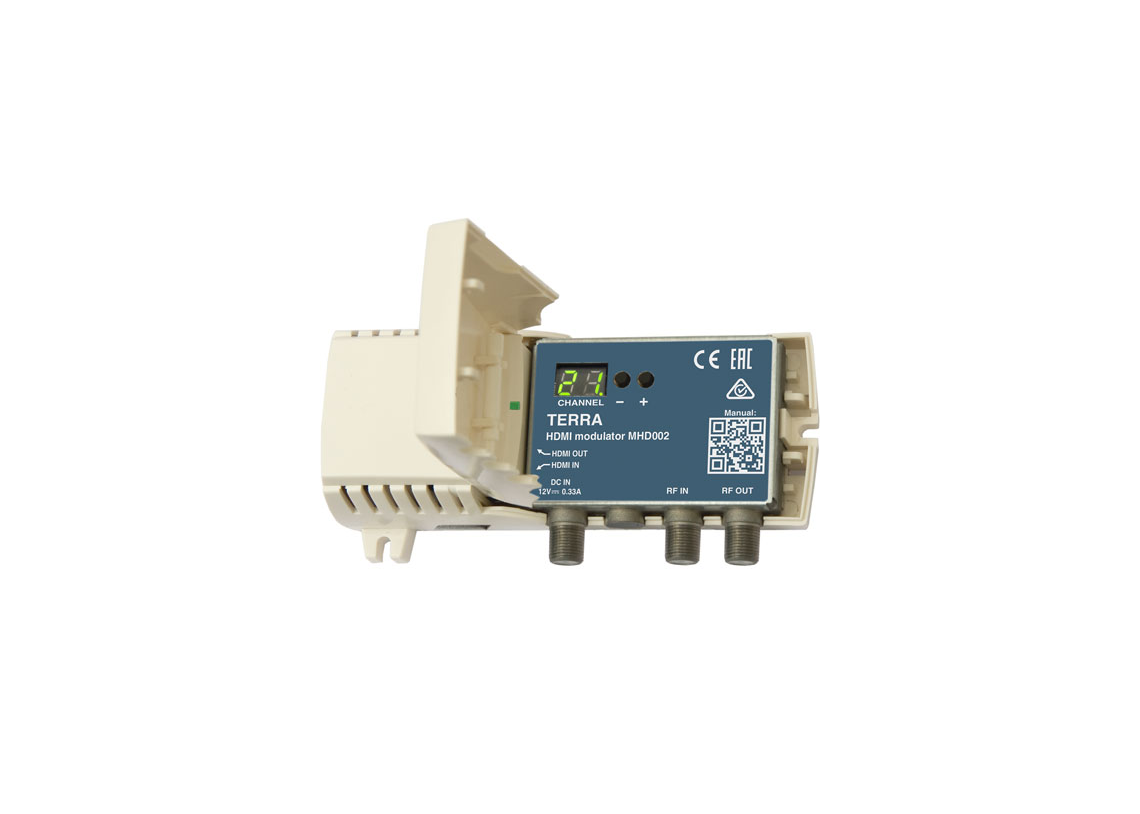

MHD002P
Discontinued
packed with power supply
|
Ordering number 14812 |
|
T Y P E |
MHD002P* |
||||
|
Ordering number |
14812 |
||||
|
HDMI video input /output resolution |
up to 1920x1080x60p |
||||
|
H.264 Encoder |
video encoding standard |
MPEG-4 AVC/H.264, Baseline profile 4.0 |
|||
|
video output resolution |
up to 1920x1080x30p | ||||
|
audio encoding standard |
MPEG-1 Layer II, AAC |
||||
|
Transport stream |
automatic generation |
PAT, SDT, PMTs tables |
|||
|
RF output |
DVB standard |
DVB-T |
|||
|
frequency range |
pr. |
174-230 MHz, 470-862 MHz |
|||
|
MER, typical |
32 dB |
||||
|
modulation |
QAM64 |
||||
|
channel bandwidth |
pr. |
7 MHz / 8 MHz |
|||
|
shoulder attenuation |
> 36 dB |
||||
|
level/impedance |
90 dBμV/75 Ω |
||||
|
output level adjustment |
pr. |
0 ÷ -30 dB by 1 dB step |
|||
|
loop through frequency range/loss |
45-862 MHz / ≤ 2.5 dB |
||||
|
Power consumption |
100-240 V~ 50/60 Hz 4.4 W |
||||
|
Operating temperature |
0°C ÷ +40°C |
||||
|
Dimensions/Weight (packed) |
133x63x39 mm/0.28 kg |
||||
pr. - software control
* MHD002P is packed with external power supply SYS1381N-1212-W2E
