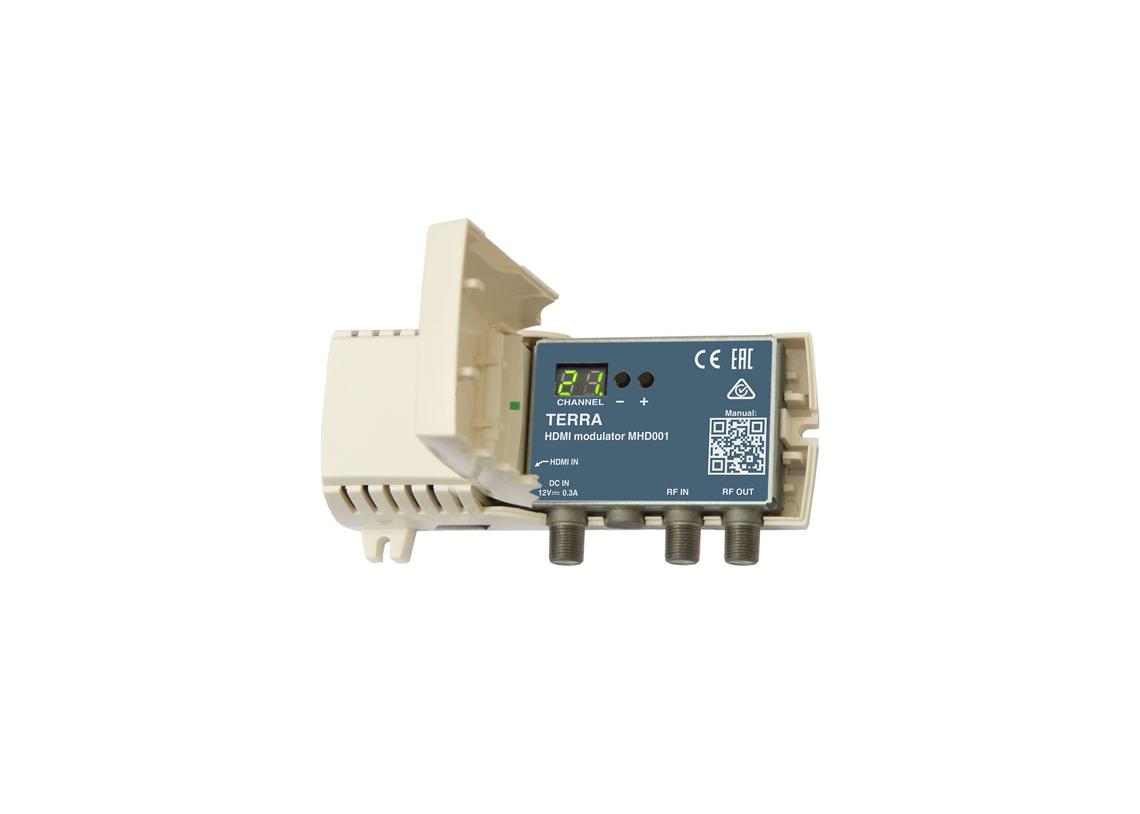

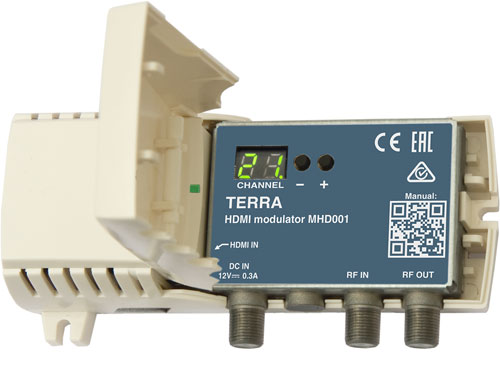

MHD001
Discontinued
|
Ordering number 14807 |
• How to set up HDMI to DVB-T modulator MHD001:
|
T Y P E |
MHD001* |
||||
|
Ordering number |
14807 |
||||
|
Video input |
input signal type |
HDMI |
|||
|
video coding |
MPEG-4AVC/H.264, Baseline profile 4.0 |
||||
|
Audio input |
input signal type |
HDMI |
|||
|
audio coding |
MPEG-1 Layer II, AAC |
||||
|
H.264 Encoder |
standard |
MPEG-4 AVC/H.264 |
|||
|
Output resolution |
up to 1920x1080x30p |
||||
|
Transport stream |
automatic generation |
PAT, SDT, PMTs tables |
|||
|
RF output |
DVB standard |
DVB-T |
|||
|
frequency range |
pr. |
174-230 MHz, 470-862 MHz |
|||
|
MER, typical |
32 dB |
||||
|
modulation |
QAM64 |
||||
|
channel bandwidth |
pr. |
7 MHz / 8 MHz |
|||
|
shoulder attenuation |
> 36 dB |
||||
|
level/impedance |
90 dBμV/75 Ω |
||||
|
output level adjustment |
pr. |
0 ÷ -30 dB by 1 dB step |
|||
|
loop through frequency range/loss |
45-862 MHz / ≤ 2.5 dB |
||||
|
Current consumption |
12 ± 1 V 300 mA |
||||
|
Operating temperature |
0°C ÷ +40°C |
||||
|
Dimensions/Weight (packed) |
133x63x39 mm/0.18 kg |
||||
pr. - software control
* MHD001 is packed with adapter for 5.5/2.1 mm DC jack
