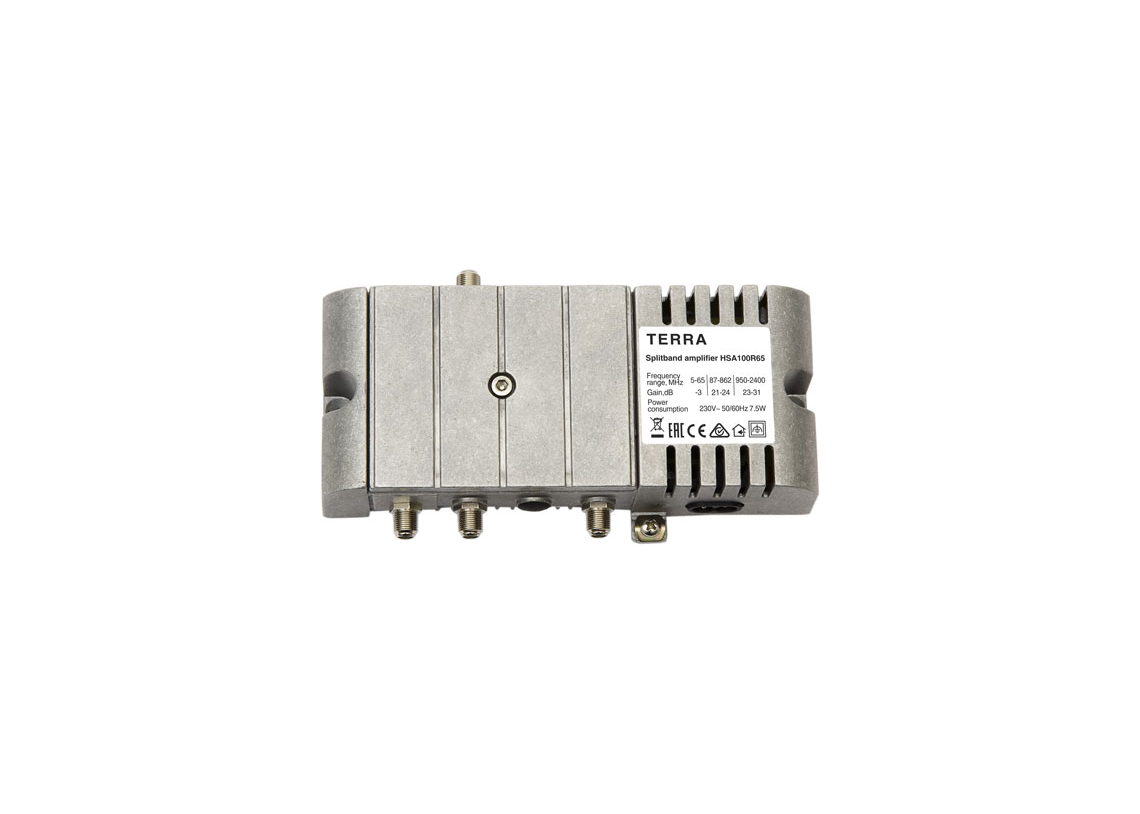

HSA100R65
|
Ordering number 01780 |
|
T Y P E |
HSA100R65 |
||||
|
Ordering number |
01780 |
||||
|
Forward path |
|||||
|
Frequency range |
SAT IF |
950-2400 MHz |
|||
|
Terr. TV |
87-862 MHz |
||||
|
Gain |
SAT IF |
23-31 dB (pre-correction) |
|||
|
Terr. TV |
21-24 dB (pre-correction)/-4 dB, switchable |
||||
|
Gain adjustment |
SAT IF |
10 dB |
|||
|
Terr. TV* |
18 dB |
||||
|
Slope adjustment |
SAT IF |
14/8 dB switchable |
|||
|
Terr. TV* |
18 dB |
||||
|
Input and output return loss |
SAT IF |
≥ 10 up to 1750 MHz, 1750-2400 MHz linear decrease from 10 dB up to 7 dB |
|||
|
Terr. TV |
≥ 10 dB |
||||
|
Maximal output level |
SAT IF |
120 dBµV (2 egual carriers) |
|||
|
Maximal output level |
Terr. TV |
115 dBµV |
|||
|
Noise figure |
SAT IF |
8 dB |
|||
|
Terr. TV |
8 dB |
||||
|
Return path |
|||||
|
Frequency range |
5-65 MHz |
||||
|
Loss |
3 dB |
||||
|
Return loss |
> 14 dB |
||||
|
General |
|||||
|
Mains power consumption |
230 V~ 50/60 Hz 7.5 W |
||||
|
Temperature range |
-20° ÷ +50°C |
||||
|
Dimensions |
185x91x47 mm/0.7 kg |
||||
* terrestrial TV signal gain, slope adjustment and return path are not available in passive terrestrial TV mode
