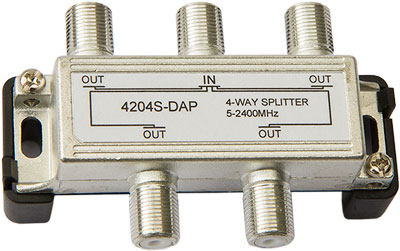

4204S-DAP
Splitter
4 way 2.4 GHz
|
Ordering number 00760 |
Specifications
|
T Y P E |
4204S-DAP |
||||
|
Ordering number |
00760 |
||||
|
Insertion loss(IN-OUT) |
5-40 MHz |
8 dB |
|||
|
40-1000 MHz |
9 dB |
||||
|
1000-2050 MHz |
11 dB |
||||
|
2050-2400 MHz |
11.5 dB |
||||
|
Isolation(OUT-OUT) |
5-40 MHz |
25 dB |
|||
|
40-1000 MHz |
21 dB |
||||
|
1000-2050 MHz |
21 dB |
||||
|
2050-2400 MHz |
21 dB |
||||
|
Return loss |
5-40 MHz |
10 dB |
|||
|
40-1000 MHz |
11 dB |
||||
|
1000-2050 MHz |
11 dB |
||||
|
2050-2400 MHz |
10 dB |
||||
