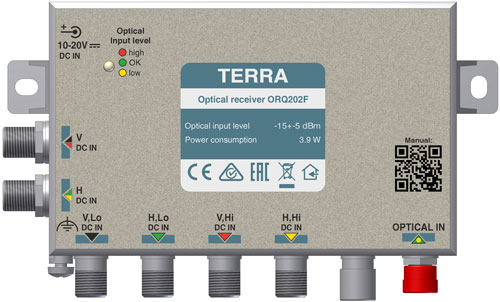

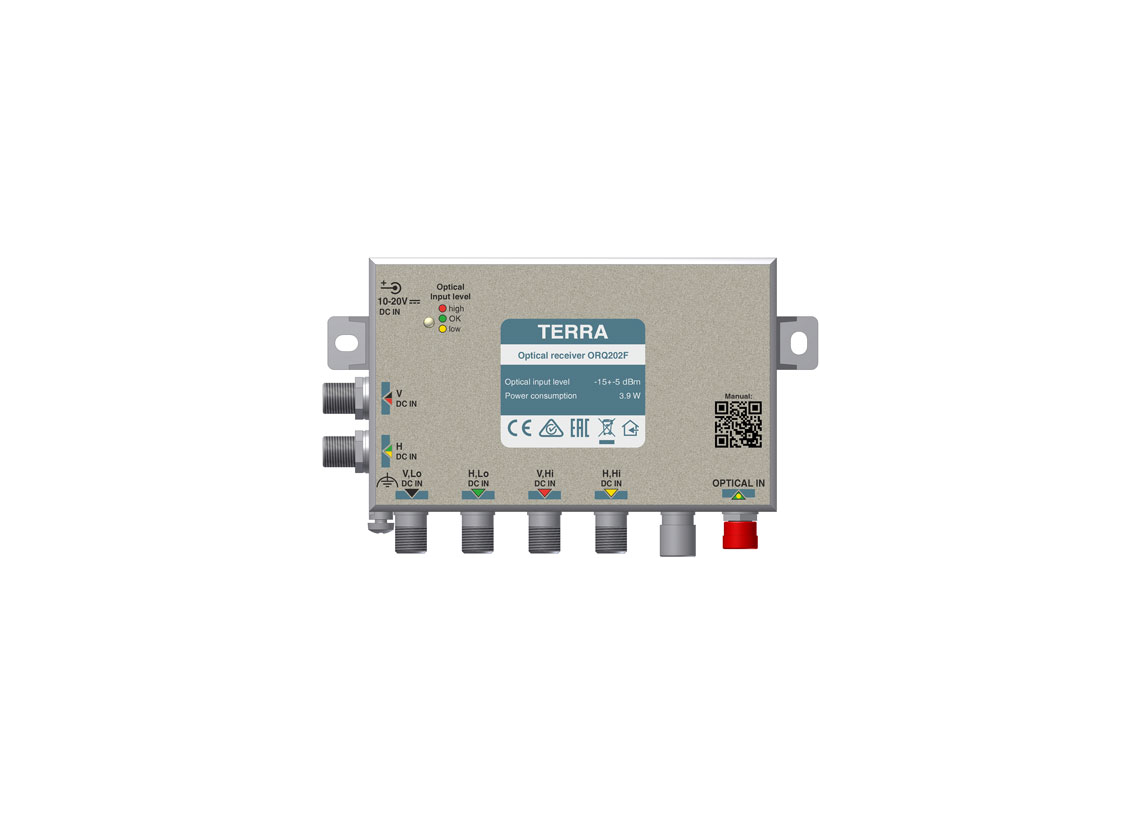

ORQ202F E
Optical receiver, 2 wideband and quattro outputs
290-2340 MHz & 950-2150 MHz; level 80 dBµV, FC/UPC
|
Ordering number 14838 |
Specifications
|
T Y P E |
ORQ202F E |
||||
|
Optical input |
|||||
|
Detection wavelength range |
1100 - 1650 nm |
||||
|
Input level (OLC range)** |
-15 ÷ -5 dBm |
||||
|
Wideband and quattro outputs |
|||||
|
Frequency range |
wideband |
2 x (290-2340) MHz |
|||
|
quattro |
2 x (950-1950) & 2 x (1100-2150) MHz |
||||
|
Output level |
wideband |
80 dBµV |
|||
|
quattro |
80 dBµV |
||||
|
General |
|||||
|
Internal IF |
290-2340 MHz |
||||
|
Return loss / impedance |
> 10 dB / 75 Ω |
||||
|
Supply voltage |
DC input |
10-20 V |
|||
|
wideband outputs |
10-20 V |
||||
|
quattro outputs |
10-20 V |
||||
|
Power consumption |
3.9 W |
||||
|
Operating temperature range |
-20° C ÷ + 50° C |
||||
|
Dimensions/Weight (packed) |
147x89x26 mm/0.4 kg |
||||
** the system performance depends on optical level

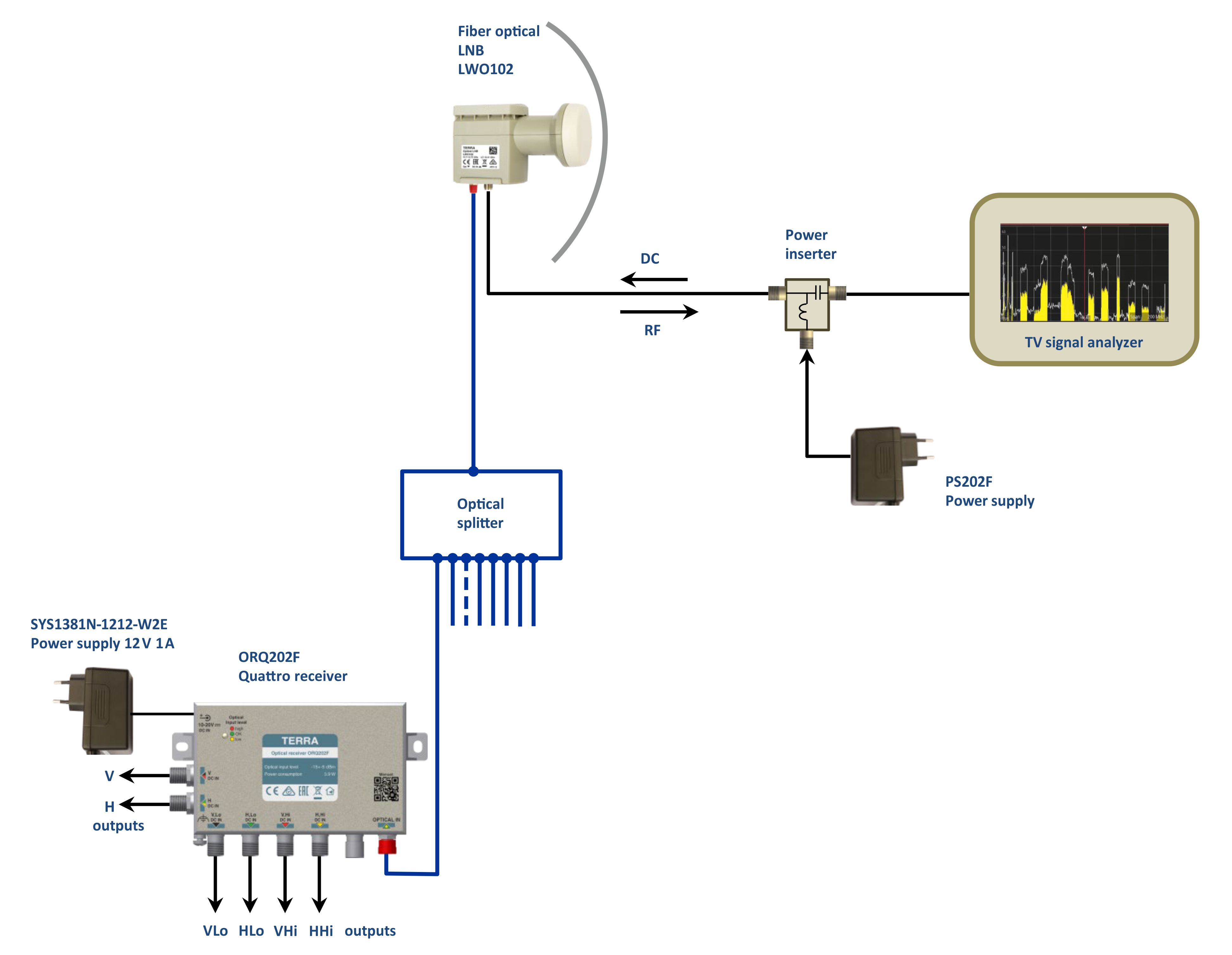

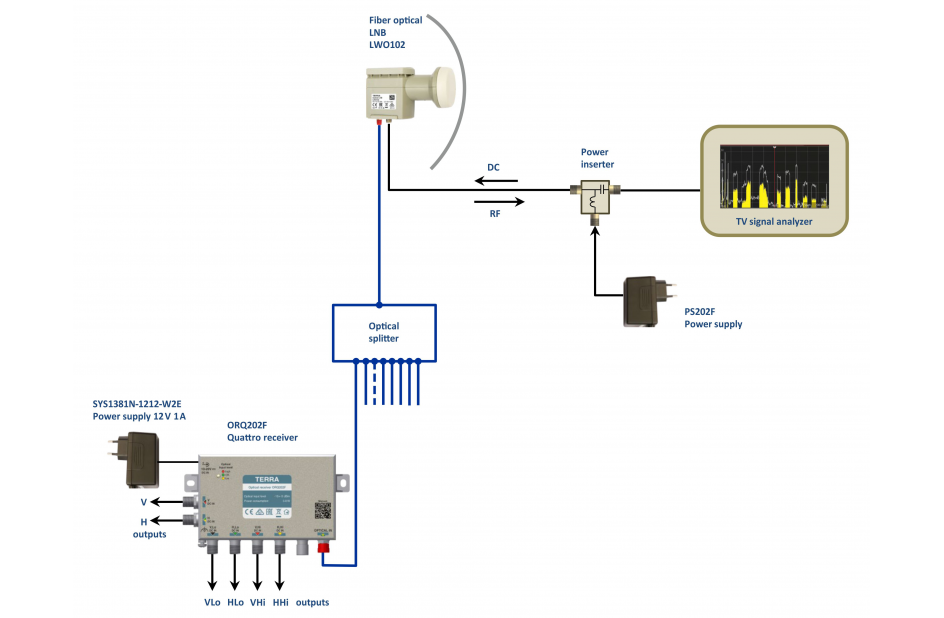

Application example
