T Y P E

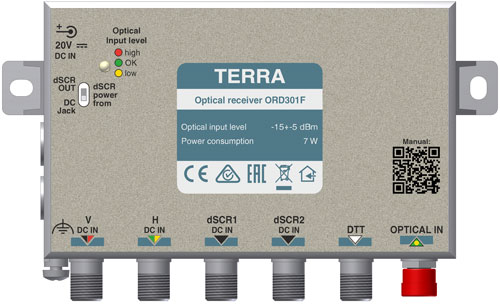

ORD301F E

Optical input

Connector IN

FC/UPC

Detection wavelength range

1100 - 1650 nm

Input level (OLC range)**

-15 ÷ -5 dBm

Wideband and DTT outputs

SAT IF frequency range

2 x (290-2350 MHz)

DTT frequency range

87.5-240/470-790 MHz

Output level

SAT IF

75 dBµV

DTT

75 dBµV

dSCR outputs

SAT IF frequency range

950-2150 MHz

User bands

32 max. per pair outputs, configurable

User band bandwidth

20-60 MHz, configurable

Control commands

EN50494 / EN50607 (SCR/dSCR), Legacy (13 V /18 V, 0 /22 kHz)

Output level

dSCR mode

76 dBµV

legacy mode

70 dBµV

DTT frequency range

87.5-240/470-790 MHz

DTT output level

75 dBµV

General

Return loss / impedance

> 10 dB / 75 Ω

Supply voltage

DC input

20 V

dSCR outputs

13-18 V

wideband outputs

10-20 V

Power consumption

7 W

Operating temperature range

-20°C ÷ + 50°C

Dimensions/Weight (packed)

147x89x26 mm/0.4 kg
