T Y P E

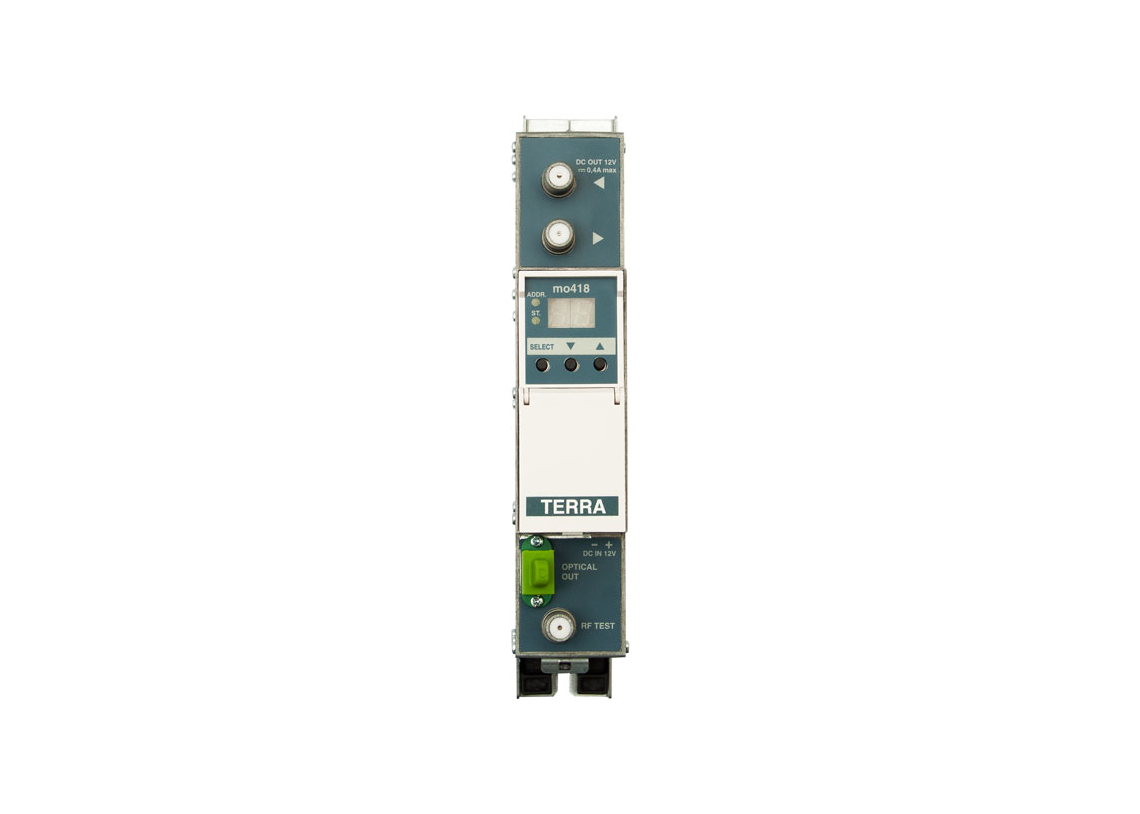

mo418 4D55

Ordering number

02884

Laser

6 dBm DFB 1550 nm

Number of optical outputs

1

Optical power

1x6 dBm

RF frequency range

47-2400 MHz

RF input level

70-85 dBµV

RF input impedance

75 Ω

Gain adjustment

0...-15 dB by 1 dB step

AGC range

± 5 dB

RF input loop through

frequency range

47-2400 MHz

loss

< 1 dB

flatness

± 1.0 dB

Return loss

≥ 18 dB at 40 MHz -1.5 dB/oct (47-950 MHz);
≥ 10 dB up to 1750 MHz; ≥ 7 dB up to 2400 MHz

Terr.TV

intermodulation distortion CSO**

> 55 dB

intermodulation distortion CTB**

> 60 dB

carrier/noise ratio C/N**

> 50 dB

SAT IF intermodulation distortions***

> 35 dB

Supply voltage

12 V ± 1 V

DC feeding for external

12 V  0.4 A

Current consumption

0.35 A max.

Operating temperature range

0°C ÷ +50°C

Dimensions/Weight (packed)

36x198x107.5 mm/ 0.9 kg
