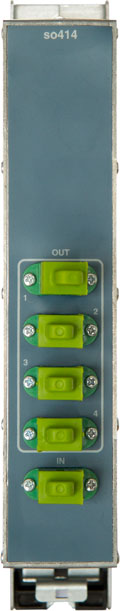

so414
Splitter 1x4
1260-1650 nm, typical insertion loss 7.0 dB
|
Ordering number 02876 |
Specifications
|
T Y P E |
so414 |
||||
|
Ordering number |
02876 |
||||
|
Splitter |
1x4 |
||||
|
Operating wavelength |
1260-1650 nm |
||||
|
Insertion loss |
typical |
7.0 dB |
|||
|
maximum value |
7.5 dB |
||||
|
Loss uniformity |
≤ 0.6 dB |
||||
|
Return loss |
≥ 50 dB |
||||
|
Wave length dependent loss |
≤ 0.3 dB |
||||
|
Directivity |
≥ 55 dB |
||||
|
Temperature stability -20 to +70°C |
≤ 0.4 dB |
||||
|
Optical input power, max. |
300 mW |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
36x198x116 mm/0.65 kg |
||||
