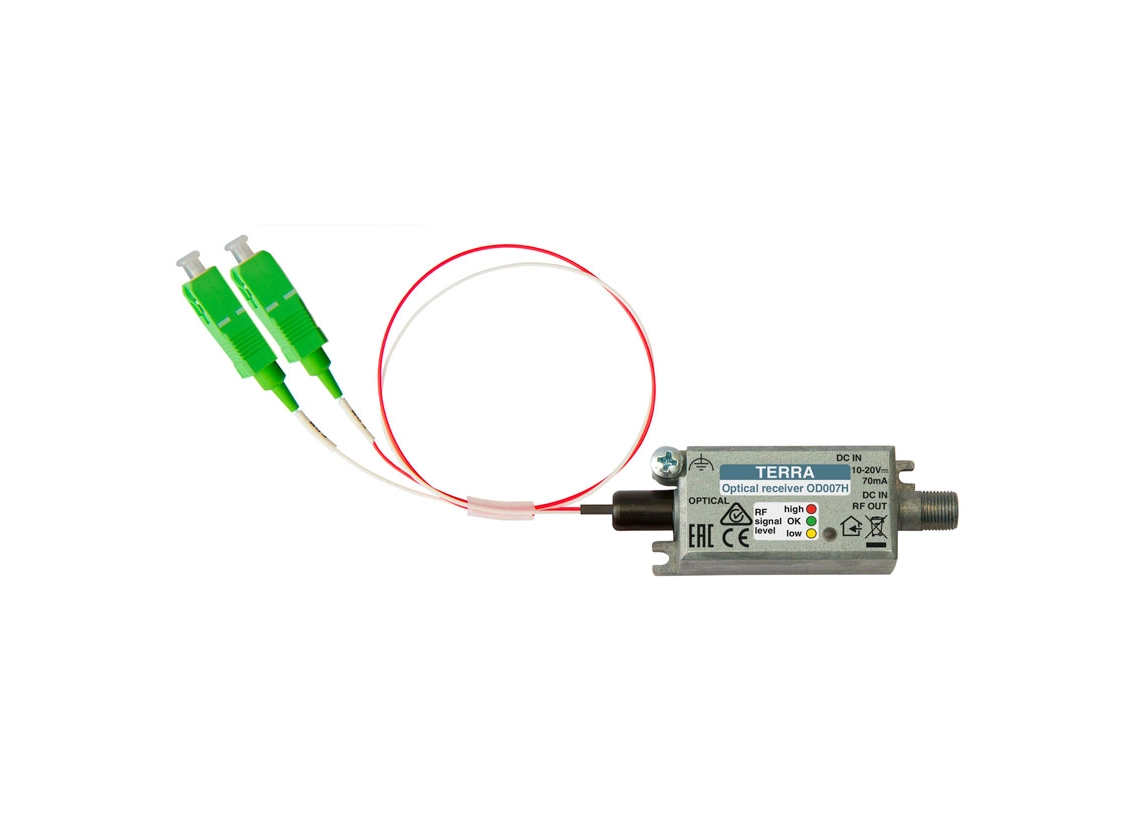

OD007H HH
|
Ordering number 03881 |
|
T Y P E |
OD007H HH |
||||
|
Ordering number |
03881 |
||||
|
Optical |
wavelenght for receiver |
1540-1560 nm |
|||
|
wavelenght pass |
1260-1360 nm & 1480-1500 nm |
||||
|
optical connector |
SC/APC - SC/APC |
||||
|
insertion loss |
< 0.4 dB |
||||
|
isolation |
> 30 dB |
||||
|
return loss input |
> 50 dB |
||||
|
return loss output |
> 40 dB |
||||
|
input level ** (AGC range) |
-15 ÷ 0 dBm |
||||
|
noise current density |
≤ 7.0 pA/√Hz |
||||
|
RF output |
frequency range |
47-2400 MHz |
|||
|
impedance |
75 Ω |
||||
|
return loss |
≥ 14 dB at 40 MHz -1.5 dB/oct., but not less 10 dB |
||||
|
frequency response |
3 dB (precorrection) ± 1.5 dB |
||||
|
output level (AGC range) |
70 dBµV*** (per transponder); 85 dBµV (total) |
||||
|
Supply voltage |
10 V...20 V |
||||
|
Current consumption |
70 mA max. |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
90x27x19 mm/0.08 kg |
||||
Receivers with other connectors are supplied by MOQ request.
** optical input signal 4.9% OMI, 30 SAT IF transponders: OD007 - 1310 nm, OD007H - 1550 nm
*** at frequency 1300 MHz
