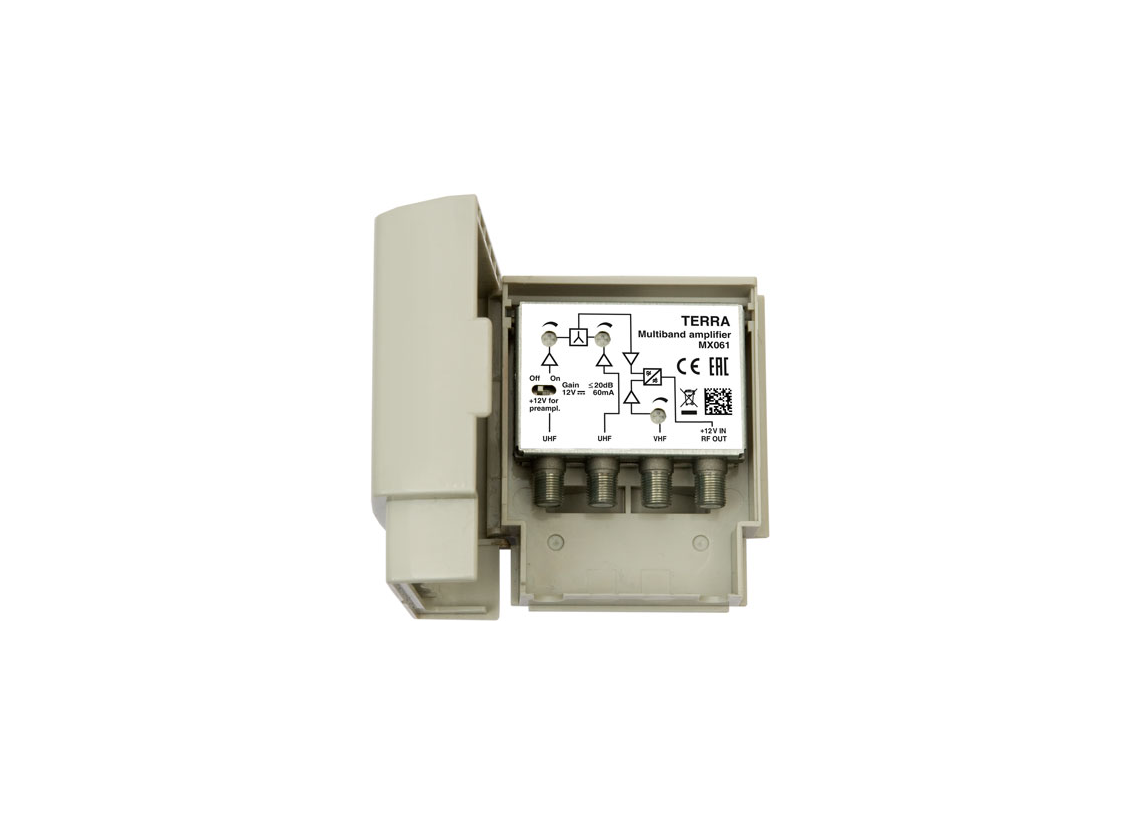

MX061
Discontinued
Multiband amplifier 3 inputs FM-B3+UHF+UHF, level DIN 108 dBµV
|
Ordering number 03525 |
Specifications
|
T Y P E |
MX061 |
||||
|
Ordering number |
03525 |
||||
|
Gain |
FM (88-108 MHz) |
16 dB |
|||
|
VHFIII (174-260 MHz) |
16 dB |
||||
|
UHF (470-790 MHz) |
2x20 dB |
||||
|
Number of inputs |
3 |
||||
|
Noise figure |
VHF 6 dB; UHF 3 dB |
||||
|
Maximal output level |
IMD3=60 dB (DIN45004B) |
108 dBµV |
|||
|
IMD3=60 dB |
105 dBµV |
||||
|
Gain control |
VHF 0 ÷ -10 dB; UHF 0 ÷ -10 dB |
||||
|
Return loss |
> 10 dB |
||||
|
DC for preamplifiers (switchable)* |
through UHF input |
||||
|
Current consumption** |
12 V 65 mA |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
89x107x43 mm/0.18 kg |
||||
* 12 V 60 mA max.
** without external DC loading
