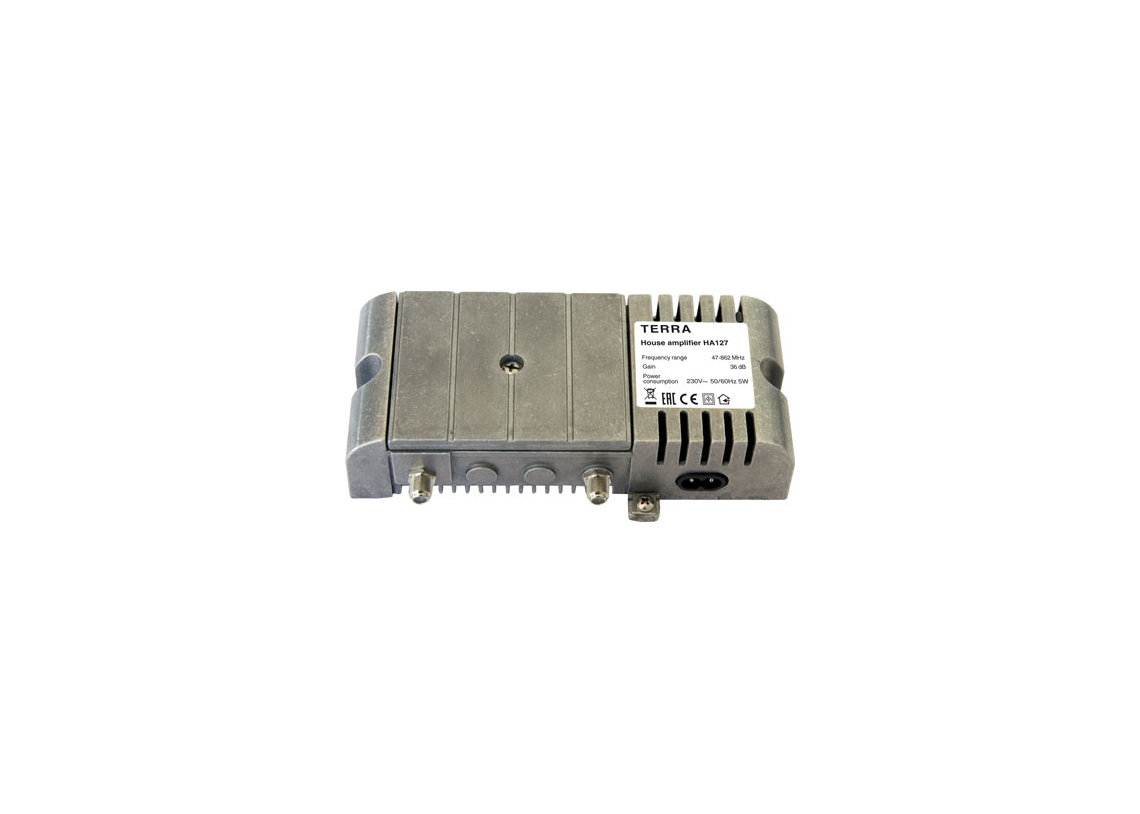

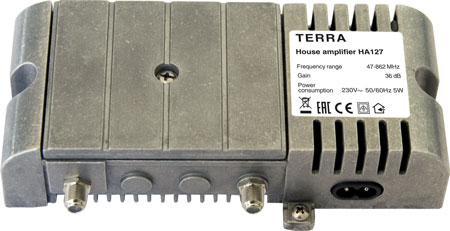

HA127
House amplifier
up to 862 MHz, gain 36 dB, level CTB/CSO 101 dBµV
|
Ordering number 10525 |
Specifications
|
T Y P E |
HA127 |
||||
|
Forward path |
|||||
|
Frequency range |
47-862 MHz |
||||
|
Gain, switchable* |
24-27/32-36 dB (fixed slope pre-correction) |
||||
|
Gain adjustment |
18 dB |
||||
|
Slope adjustment |
18 dB |
||||
|
Flatness* |
± 0.5 dB |
||||
|
Input and output return loss |
≥ 14 dB at 40 MHz; -1.5 dB/oct., but not less 10 dB |
||||
|
Output level CTB, CSO (EN60728-3) |
101 dBµV |
||||
|
Noise figure |
7 dB |
||||
|
General |
|||||
|
Power consumption |
230 V~ 50/60 Hz 5 W |
||||
|
Operating temperature range |
-20°C ÷ +50°C |
||||
|
Dimensions/Weight (packed) |
185x91x47 mm/ 0.8 kg |
||||
* for amplifiers with return path measured 10 MHz after the starting frequency of forward path
