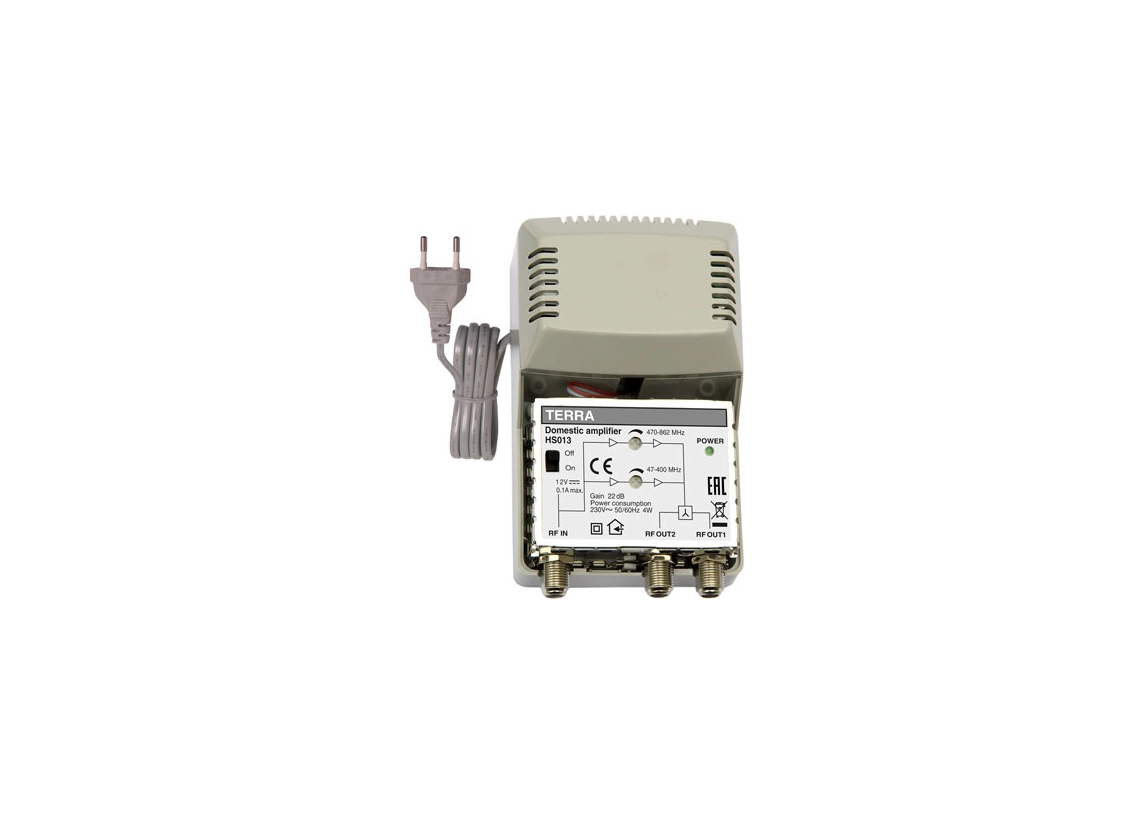

HS013
Splitband amplifier, two outputs
up to 862 MHz, gain 22 dB, level DIN 105 dBµV
|
Ordering number 01588 |
Specifications
|
T Y P E |
HS013 |
||||
|
Ordering number |
01588 |
||||
|
Frequency range |
47-400/470-862 MHz |
||||
|
Gain |
22 dB* |
||||
|
Gain adjustment |
VHF 0 ÷ -15 dB, UHF 0 ÷ -12 dB |
||||
|
Maximal output level IMD3=60 dB (DIN45004B) |
105 dBµV* |
||||
|
Maximal output level IMD2=60 dB (EN60728-3) |
95 dBµV |
||||
|
Noise figure |
VHF < 4.5 dB, UHF < 3 dB |
||||
|
DC feeding for external |
12 V 0.1 A max. |
||||
|
Power consumption** |
230 V~ 50/60 Hz 4 W |
||||
|
Dimensions/Weight (packed) |
78x118x47 mm/0.36 kg |
* 1 output loaded; when 2 outputs loaded: gain - 20 dB, output level - 103 dBµV
** without external DC loading
